O+P Pre-Assembling & Flaring Machine

Unispeed USFL/01 MAN – Manual DIN 2353 Pre-Assembly & 37° Flaring Tool

Supplied by Multi Flow – Authorised Distributor of O+P in the UAE

Multi Flow Hydraulic Repair Services is the authorised distributor of O+P in the UAE.

Product Description

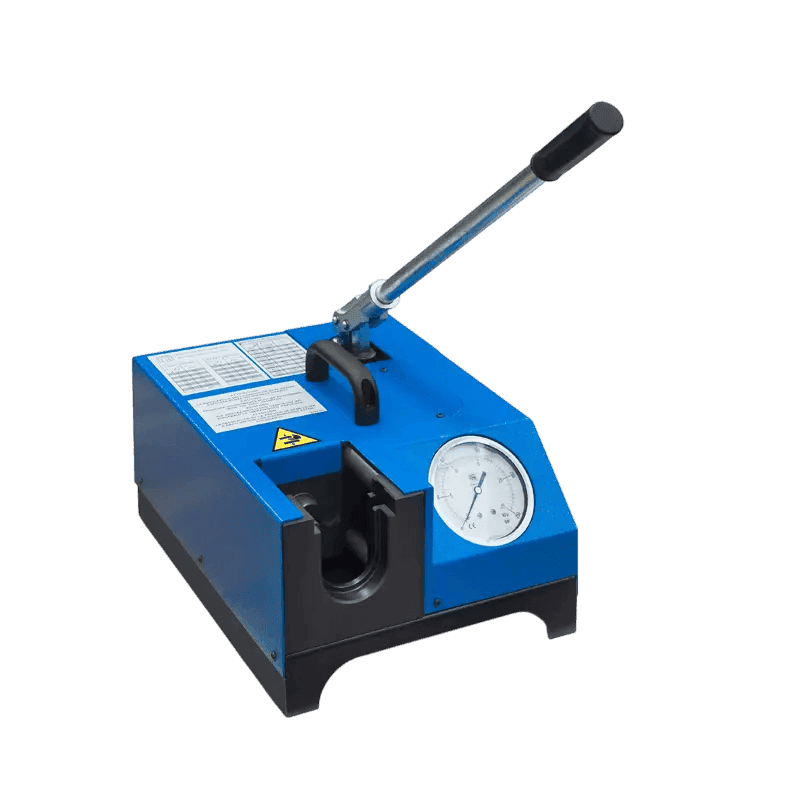

The O+P Unispeed USFL/01 MAN is a rugged, efficient, and highly reliable manual tool designed for both DIN 2353 ring pre-assembly and 37° flaring of rigid hydraulic tubing. Built for mobile technicians and outdoor service teams, this compact unit ensures professional-grade tube preparation wherever it is needed — from marine environments to industrial sites and remote field operations.

Thanks to the addition of a special hardened steel block, the USFL/01 MAN performs precise 37° flaring on stainless steel (AISI 316 TI) and carbon steel (ST 37.4) pipes, handling diameters from 6 to 42 mm and wall thicknesses up to 4 mm with ease.

Manufactured in Italy to the highest engineering standards, it delivers exceptional reliability, long service life, and perfect results in demanding environments.

Key Features

DIN 2353 Ring Pre-Assembly

Ensures accurate, leak-proof pre-assembly of DIN 2353 cutting rings.

Suitable for hydraulic systems requiring high pressure integrity.

37° Flaring Capability

Performs precise 37° flares on rigid tubes using the included special steel block.

Supports:

6–42 mm tube diameter

Up to 4 mm wall thickness

Compatible with SAE and JIC standards.

Perfect for Outdoor & Mobile Service

Lightweight, manual, and fully portable — ideal for:

Marine service teams

On-site hydraulic repair

Industrial field maintenance

Offshore & remote area operations

Standards-Compliant Flaring Tools

Flaring tools supplied according to:

UNI ISO 8434-2

DIN 3949

Ensures compatibility with global hydraulic connection standards.

Durable Italian Engineering

Built to withstand tough working conditions with consistent precision and reliability.
