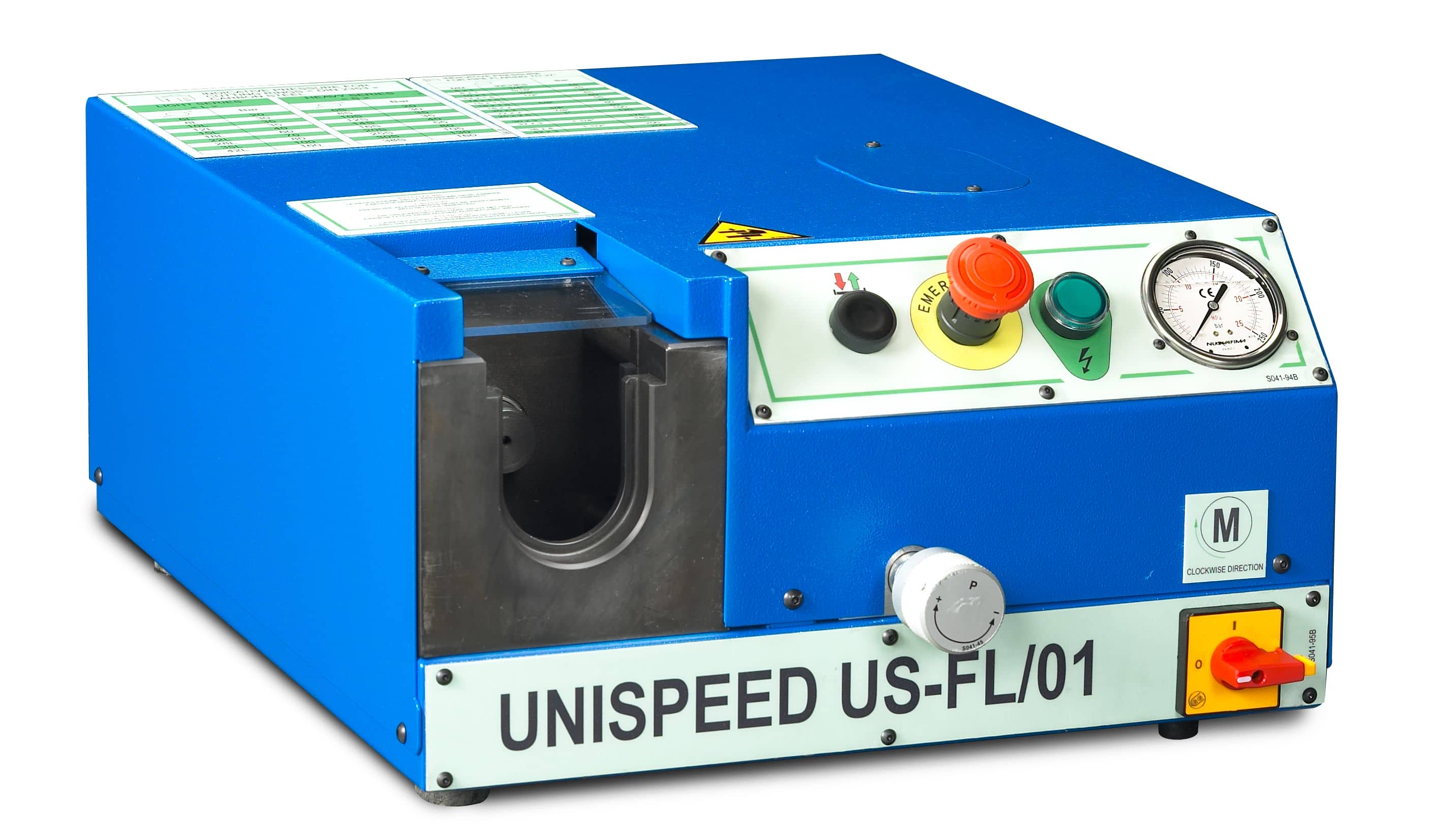

UNISPEED USFL/01 O+P Flaring & Preassembling Machine
Product Summary
The Unispeed USFL/01 allows for the pre-assembly of DIN2353 rings by manually adjusting the pressure, which must be set before each operation. Thanks to the addition of a special steel block, it is al...
See full details and specifications in the tabs below.
Need Help?
Our technical experts are available to help you choose the right product.
📞 +971502789751
✉️ sales@multiflow.ae
💬 +971502789751
Product Description
The Unispeed USFL/01 allows for the pre-assembly of DIN2353 rings by manually adjusting the pressure, which must be set before each operation. Thanks to the addition of a special steel block, it is also possible to achieve 37° flaring of rigid stainless steel (AISI 316 TI) and carbon steel (ST 37.4) pipes from 6 to 42 mm in diameter and 4 mm in maximum wall thickness. Also available in a 12V version, it is the perfect tool for outdoor assistance. Flaring tools are supplied in accordance with UNI ISO 8434-2 and DIN 3949 standards.
Features
Unispeed USFL/01 – Ring Pre-Assembly & 37° Flaring Tool (Outdoor Service Ready)
The Unispeed USFL/01 is engineered for precision DIN 2353 ring pre-assembly with manual pressure adjustment, ensuring accurate settings before each operation. With the addition of a special hardened steel flaring block, the tool also enables perfect 37° flaring of rigid hydraulic pipes.
Built to handle both stainless steel (AISI 316 TI) and carbon steel (ST 37.4) pipes, the USFL/01 supports diameters from 6 mm to 42 mm with a maximum wall thickness of 4 mm—making it a versatile solution for workshop and field applications.
It is also available in a 12V version, making it ideal for mobile hydraulic service teams and outdoor on-site repairs.
Flaring tools are supplied in full compliance with:
UNI ISO 8434-2
DIN 3949
Key Features
✔ Manual pressure adjustment for accurate DIN 2353 ring pre-assembly
✔ 37° flaring capability using special steel block
✔ Works with AISI 316 TI & ST 37.4 rigid pipes
✔ Diameter range: 6–42 mm | Max wall thickness: 4 mm
✔ 12V mobile version available
✔ Perfect for outdoor hydraulic assistance and field maintenance
