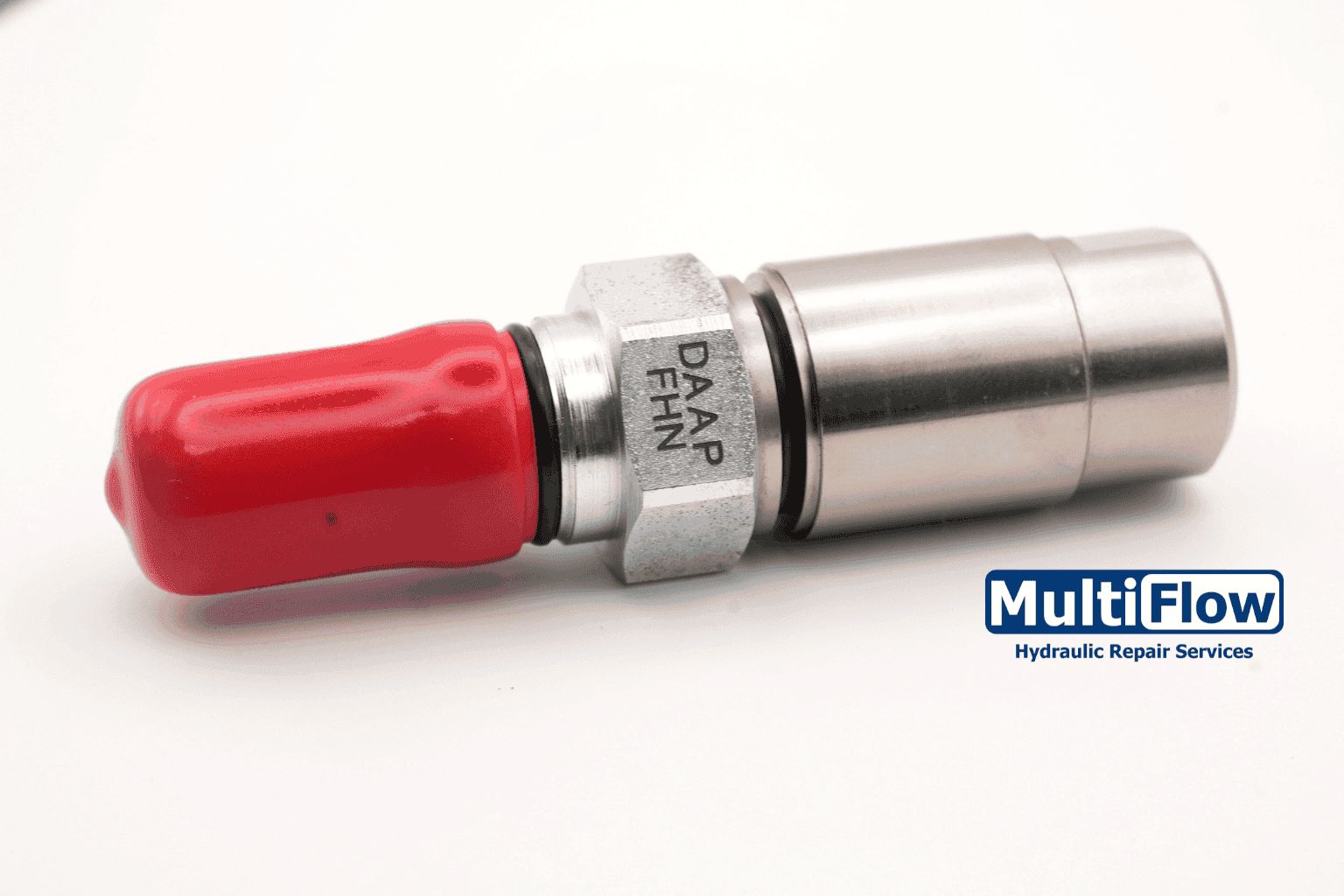

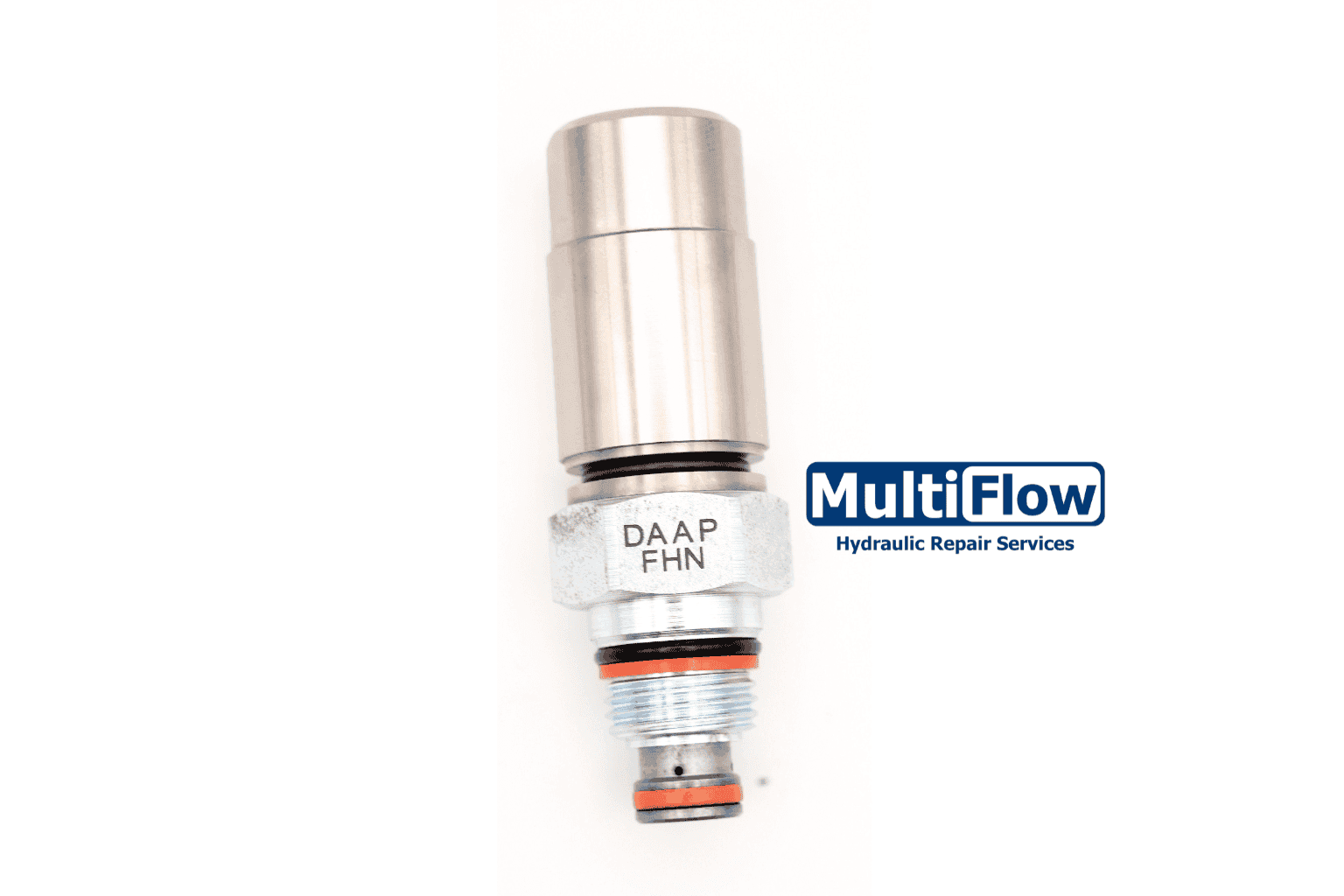

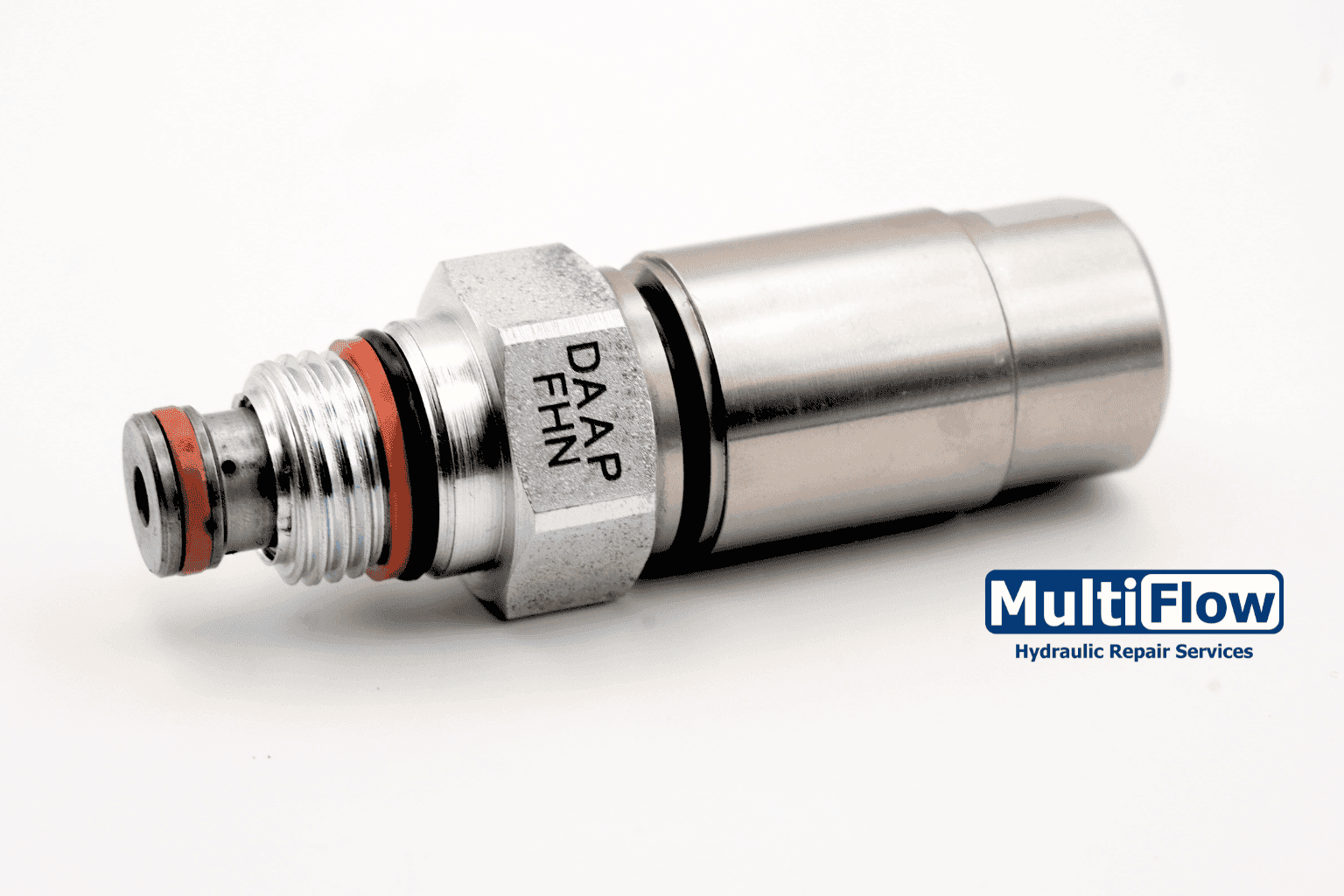

DAAPFHN
Product Summary
These pilot-stage, directional, 2-position, 2-way valves are pneumatically operated, spring-return cartridges and are available in either normally open or normally closed configurations. These cartrid...
See full details and specifications in the tabs below.
Need Help?
Our technical experts are available to help you choose the right product.
📞 +971502789751
✉️ sales@multiflow.ae
💬 +971502789751
Product Description

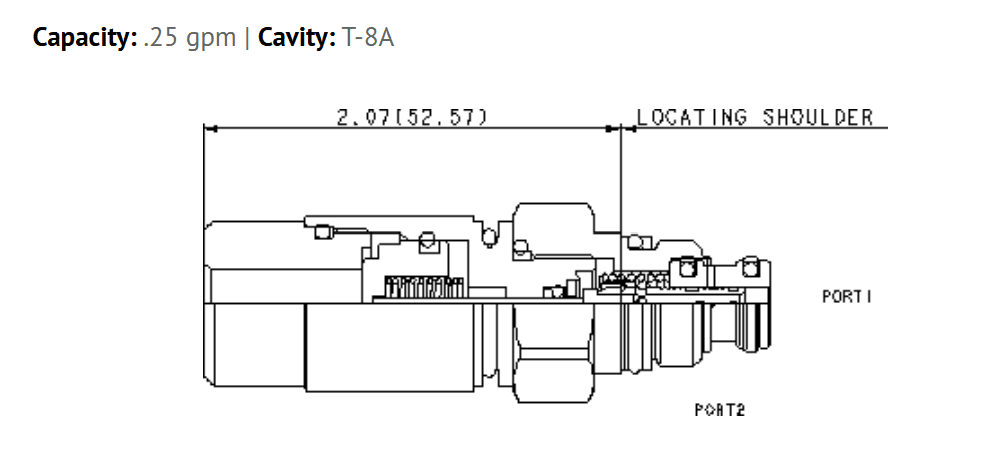

These pilot-stage, directional, 2-position, 2-way valves are pneumatically operated, spring-return cartridges and are available in either normally open or normally closed configurations. These cartridges are designed for pilot flow applications and utilize Sun's T-8A cavity so they can be used in conjunction with Sun's pilot-operated, main-stage valves.
Features
- Utilizes the Sun T-8A 2-port cavity making it the ideal choice to use in conjunction with Sun's main stage pilot or vent-to-operate cartridges. Separate pilot lines are eliminated and only one cavity needs to be machined to accommodate both the control and primary function. Note: All 2-position, 2-way pilot stage control cartridges utilize the same cavity and are physically interchangeable. Functionality is the only consideration.
- Note: The main stage valve should first be installed to the correct torque value followed by the T-8A pilot control section into the main stage valve to its required torque value.
- The preferred flow path through the valve is port 2 to port 1.
- Different pilot control port options are available. See Option Selection for details.
- Hardened spool and sleeve provide consistent operation, low spool leakage rates and superior wear characteristics.
- The minimum pilot pressure required to operate the valve is determined by the following formula: pilot pressure = 20 psi + pressure @ Port 1 divided by 100. This results in a pilot pressure range of 20 to 70 psi. In metric; pilot pressure = 1,4 bar + pressure @ Port 1 divided by 100. This results in a pilot pressure of 1,4 to 5 bar.
- All ports will accept 5000 psi (350 bar) with the exception of the pilot port which accepts 500 psi (35 bar) max.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
