UNISPEED USFL 24/37 ES 6/18
Product Summary
The new UNISPEED USFL 24/37 ES 6/18 is a machine that allows for the pre-assembly of DIN 2353 rings and, with the addition of a dedicated steel block, can also be used for 37° flaring operations on ri...
See full details and specifications in the tabs below.
Need Help?
Our technical experts are available to help you choose the right product.
📞 +971502789751
✉️ sales@multiflow.ae
💬 +971502789751
Product Description

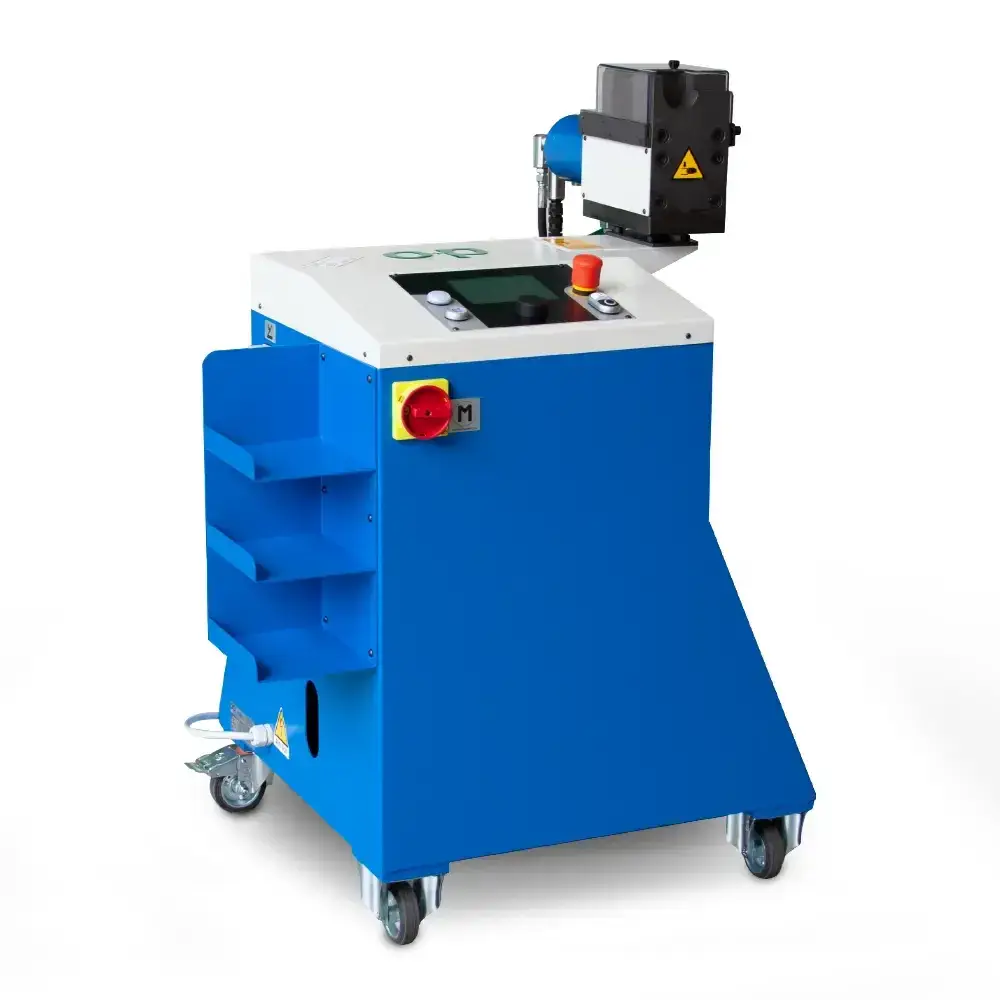

The new UNISPEED USFL 24/37 ES 6/18 is a machine that allows for the pre-assembly of DIN 2353 rings and, with the addition of a dedicated steel block, can also be used for 37° flaring operations on rigid hydraulic pipes up to 18 mm in diameter and 2 mm thick. The machine's cylinder is not integrated into the structure (a patent-pending configuration), which allows for greater work space. This, combined with smaller-than-standard tools, allows the Unispeed 24/37 ES 6/18 to process pipes with very short straight sections, for which the distance between the pre-assembly point and the first bend is extremely short (shaped rigid pipes, combined flexible and rigid pipes, very common in the automotive industry). The machine is equipped with an electronic control with a touch-screen display, which allows for the entry of processing parameters and saving recipes. Flaring tools supplied according to UNI ISO 8434-2 and DIN 3949 standards.
Features
UNISPEED USFL 24/37 ES 6/18 – Pre-Assembly & 37° Flaring Machine
The new UNISPEED USFL 24/37 ES 6/18 is an advanced and compact machine designed for pre-assembling DIN 2353 rings and, with the addition of a dedicated steel block, performing 37° flaring on rigid hydraulic pipes up to 18 mm in diameter and 2 mm in wall thickness.
Innovative Design for Maximum Flexibility

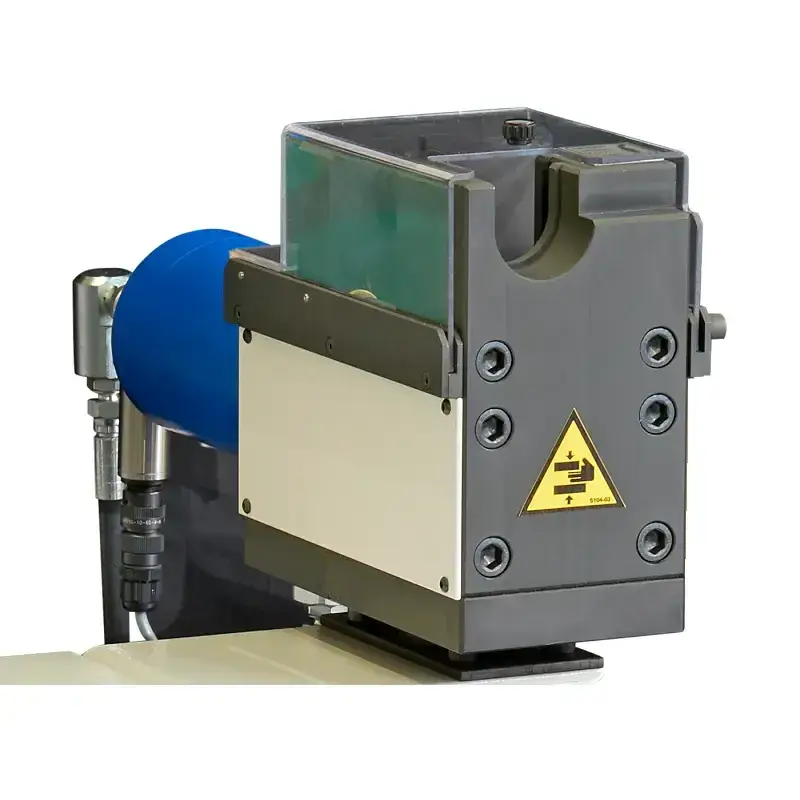

This model features a non-integrated cylinder configuration (patent pending), providing a significantly larger working area. Combined with specially designed reduced-size tooling, the USFL 24/37 ES 6/18 is ideal for processing pipes with very short straight sections, where the distance between the pre-assembly point and the first bend is minimal.

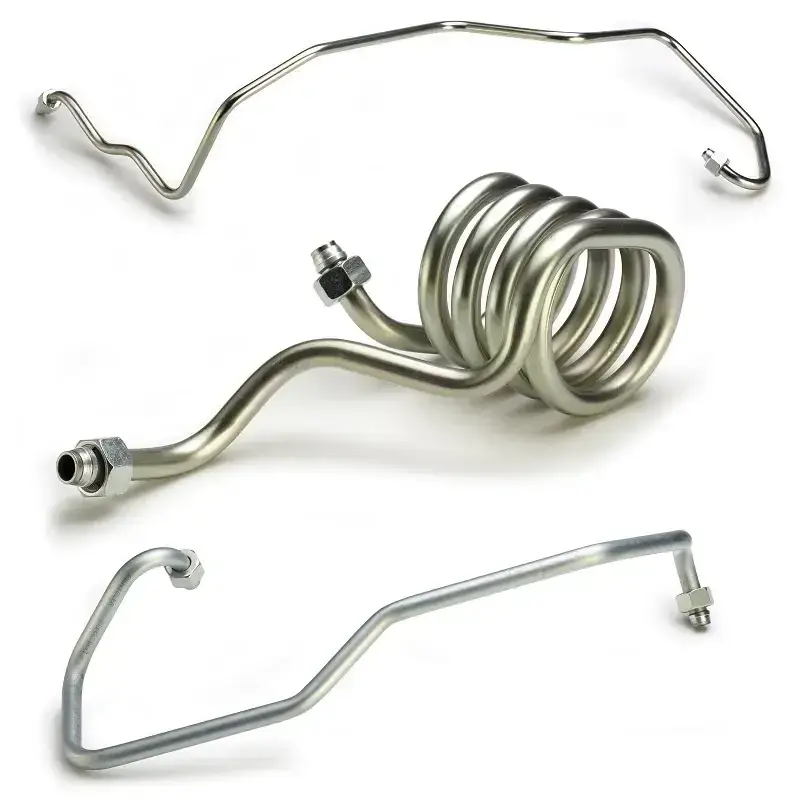

This makes the machine particularly effective for:
- Shaped rigid pipes
- Combined flexible + rigid assemblies
- Automotive hydraulic lines
- Compact hydraulic systems
- Smart Electronic Control
Equipped with an electronic touch-screen control panel, the machine enables:
- Entry of all processing parameters
- Storage of multiple working recipes
- Enhanced repeatability and workflow efficiency
- Technical Highlights
- Pre-Assembly: DIN 2353 rings
- Flaring Angle: 37°
- Max Tube Diameter: 18 mm
- Max Wall Thickness: 2 mm
- Special Feature: Increased workspace thanks to non-integrated cylinder
- Ideal For: Very short straight pipe sections, shaped tubes, automotive applications
- Flaring tools supplied in accordance with UNI ISO 8434-2 and DIN 3949 standards.
