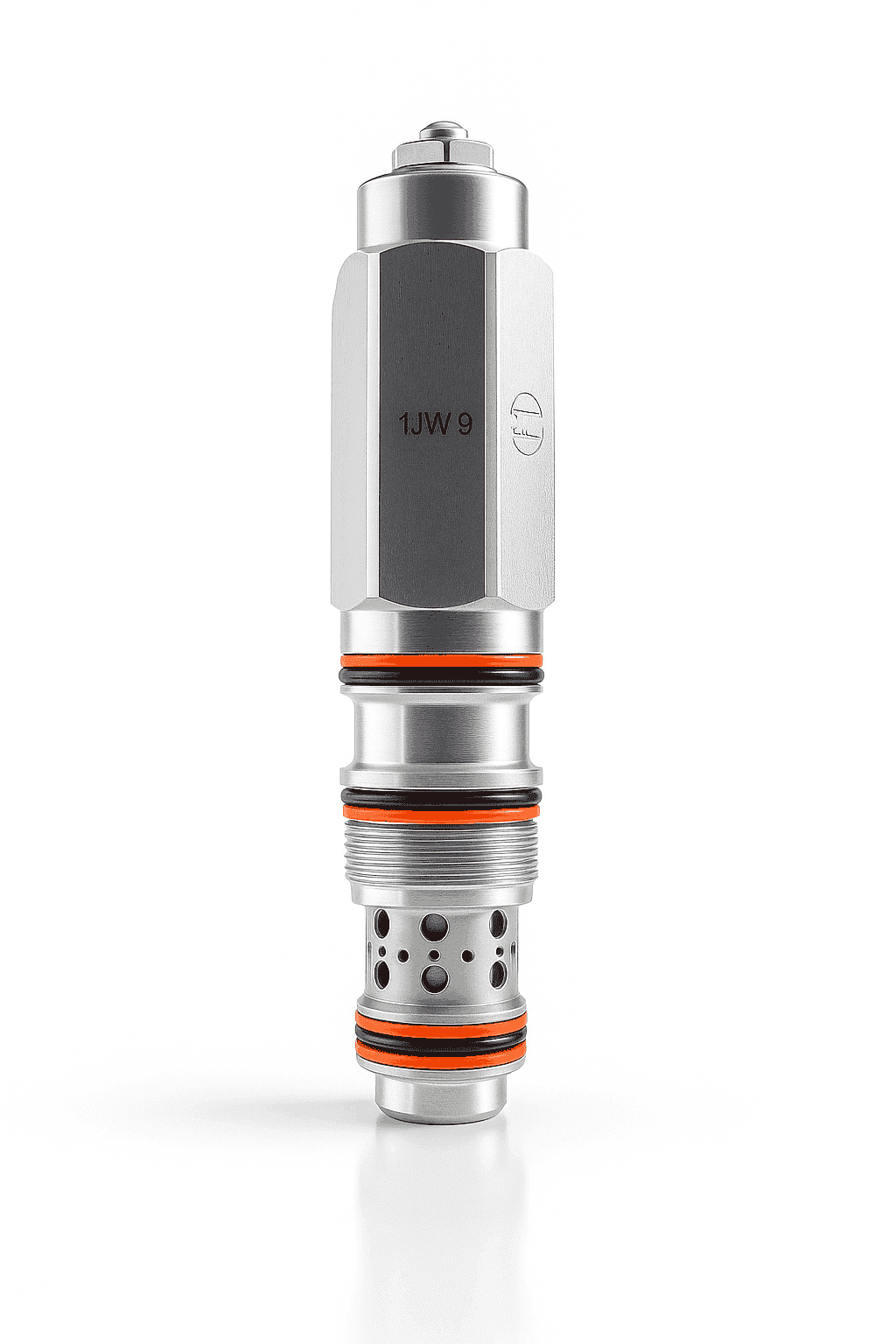

Sun Hydraulics Load Control Reactive Cartridge Valves

Advanced Load Stability | Dynamic Overrunning Load Control | Smooth Actuator Operation

Sun Hydraulics’ Load Control Reactive Cartridge Valves are designed to manage and stabilize overrunning loads by reacting proportionally to pilot pressure and load-induced flow. Unlike traditional counterbalance valves, reactive valves open only when both pilot pressure and load-induced flow are present—making them ideal for applications requiring precise, dynamic load control with minimal energy loss.

These valves prevent load drift, shock, and instability in high-speed or variable-load systems. Engineered as compact, screw-in cartridges, they are fully compatible with Sun’s modular hydraulic systems and ISO cavity standards, ensuring easy integration into both mobile and industrial applications.

Key Features:

⚙️ Pilot + Flow Reactive Design: Opens only when both pilot pressure and load flow are detected, reducing instability

⚖️ Superior Load Holding: Prevents actuator movement under load until controlled release is initiated

💧 Smooth Motion Control: Reduces shock and oscillation in lifting, lowering, or braking operations

📏 Adjustable Pressure Settings: Configurable for precise load control

🧩 Standard ISO Cavities: Quick installation in custom or standard manifolds

🛠️ Durable, Compact Design: Built for harsh conditions and long service life

Applications:

High-speed hydraulic lifting and lowering systems

Mobile equipment with variable or swinging loads (e.g., cranes, aerial platforms)

Marine and offshore winch control

Construction and forestry equipment

Precision industrial actuator systems
