All Products

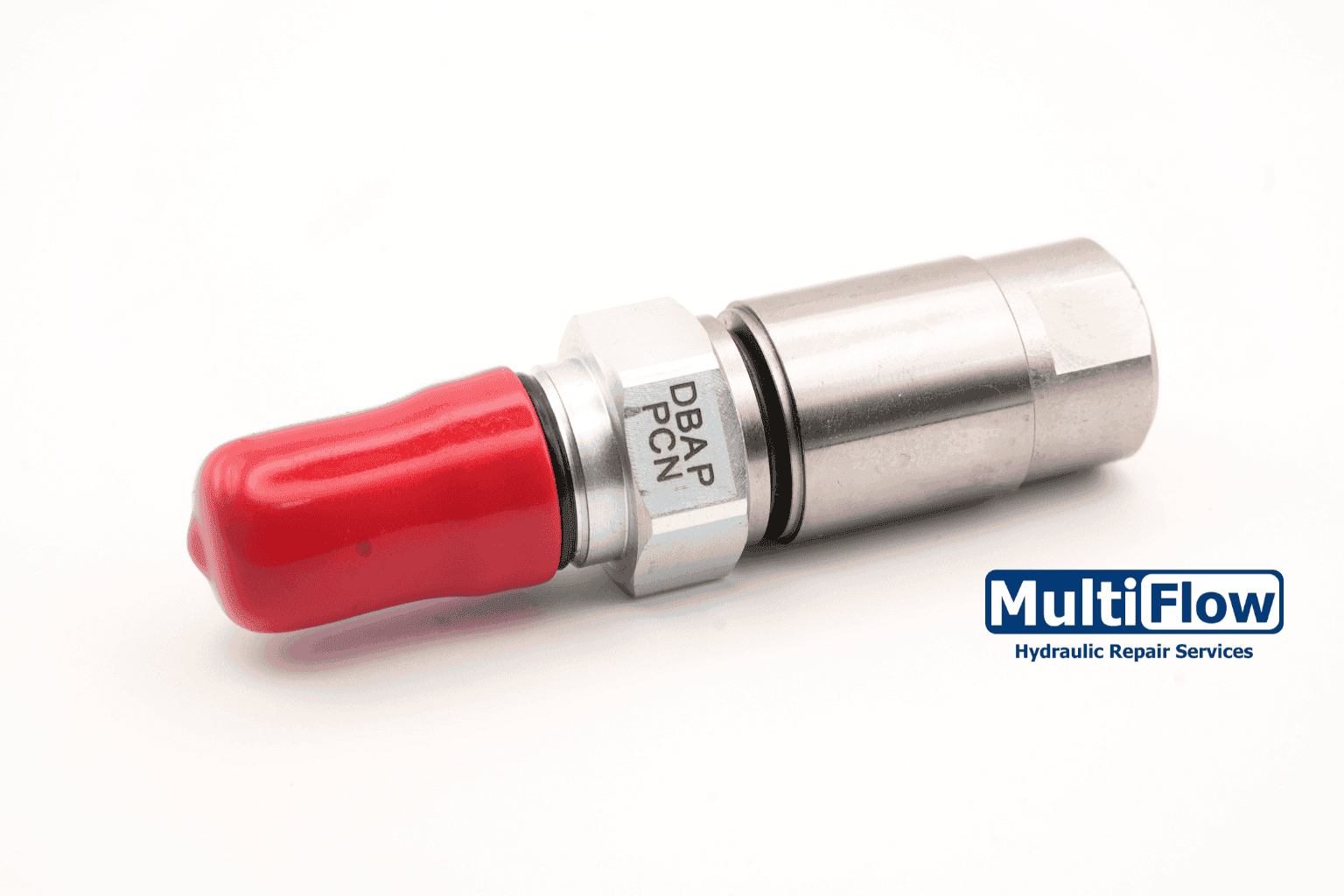

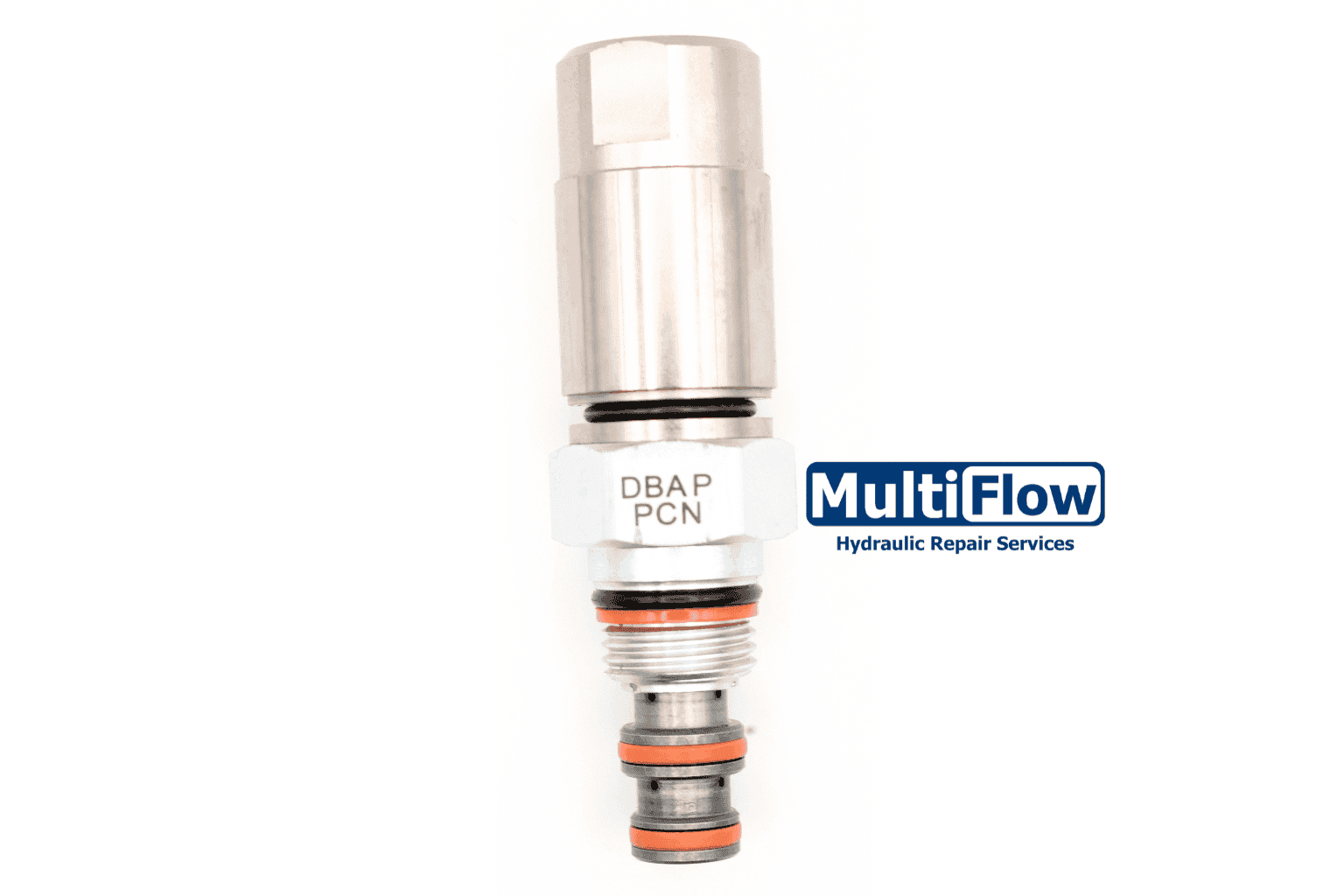

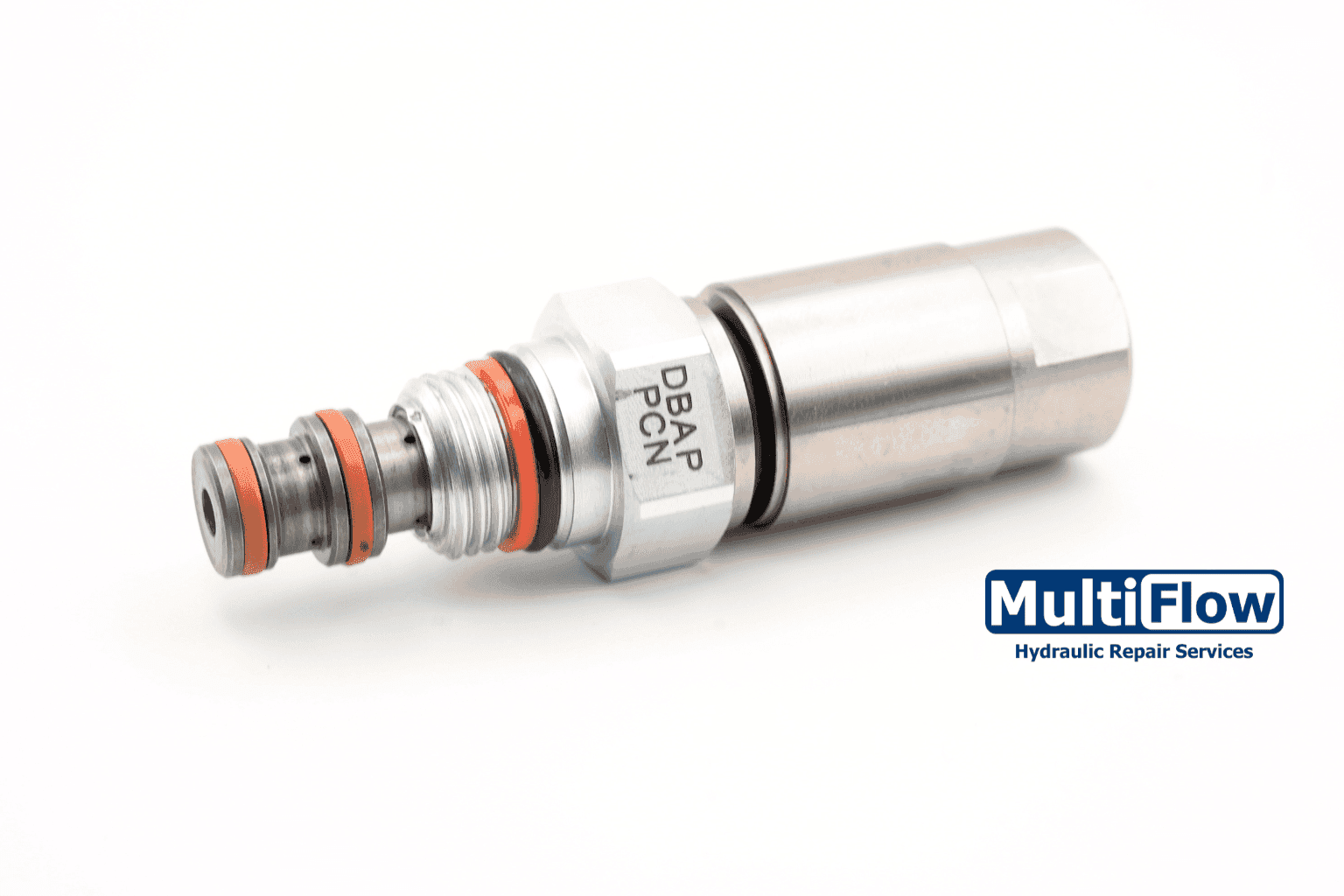

DBAPPCN
Price on Request
In Stock
Fast shipping available in UAE
Product Summary
These pilot-stage, directional, 2-position, 3-way valves are pneumatically operated, spring-return cartridges and are available in two spool configurations; normally open 1 to 2 and normally open 1 to...
See full details and specifications in the tabs below.
Request Quote
Contact us for competitive pricing
Fast delivery in UAE
Dubai, UAE based
Industrial grade quality
Authentic industrial equipment
Professional support included
Need Help?
Our technical experts are available to help you choose the right product.
📞 +971502789751
✉️ sales@multiflow.ae
💬 +971502789751
Product Description
These pilot-stage, directional, 2-position, 3-way valves are pneumatically operated, spring-return cartridges and are available in two spool configurations; normally open 1 to 2 and normally open 1 to 3.
Features
- Different pilot control port options are available. See Option Selection for details.
- Hardened spool and sleeve provide consistent operation, low spool leakage rates and superior wear characteristics.
- The minimum pilot pressure required to operate the valve is determined by the following formula: pilot pressure = 20 psi + pressure @ Port 1 divided by 100. This results in a pilot pressure range of 20 to 70 psi. In metric; pilot pressure = 1,4 bar + pressure @ Port 1 divided by 100. This results in a pilot pressure of 1,4 to 5 bar.
- All ports will accept 5000 psi (350 bar) with the exception of the pilot port which accepts 500 psi (35 bar) max.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
