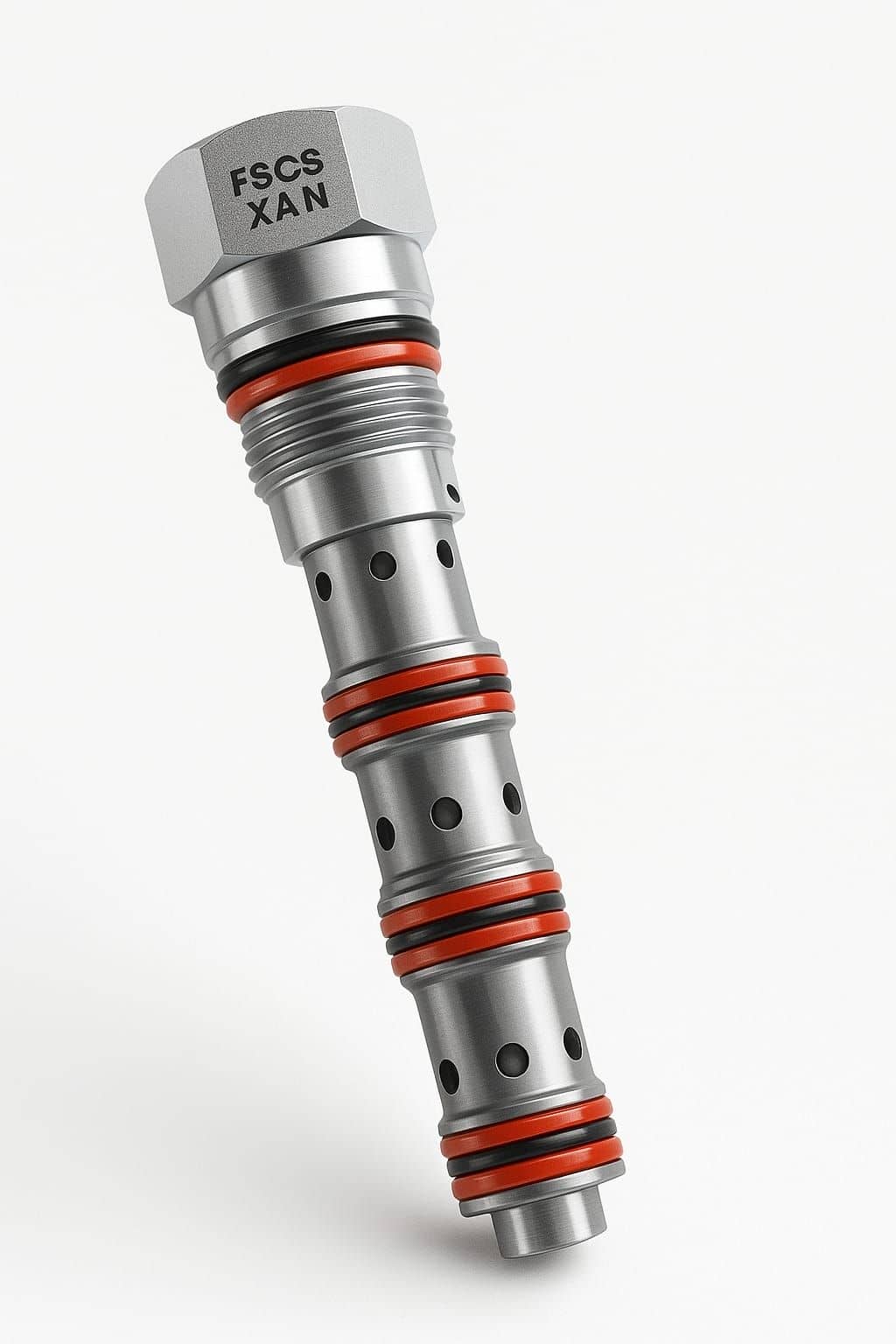

Sun Hydraulics Flow Divider / Combiner Cartridge Valves

Accurate Flow Splitting & Combining | Synchronized Actuator Control | Compact Cartridge Design

Sun Hydraulics' Flow Divider / Combiner Cartridge Valves are precision components designed to split a single flow into two equal streams or combine two flows into one, regardless of load variations. These valves are essential for maintaining synchronized movement of multiple actuators in parallel circuits, ensuring smooth and balanced performance.

Whether used in mobile machinery, industrial automation, or marine hydraulic systems, Sun’s flow divider/combiner valves offer excellent reliability, repeatability, and compact integration using standard ISO cavities.

Key Features:

🔄 Flow Division & Combination: Automatically splits or combines flow to/from two outlets

⚖️ Synchronized Actuator Movement: Maintains equal flow even under uneven loads

📏 Pressure-Compensated Design: Delivers consistent performance across varying operating pressures

🧩 ISO Cartridge Format: Easy to install in manifolds and integrated hydraulic blocks

🛠️ Robust and Compact Construction: Engineered for high-efficiency, long-life operation

💧 Low Flow Error Margin: Minimizes flow variation between outlets for smooth motion

Typical Applications:

Synchronized cylinder operation in mobile equipment

Equal flow distribution in lifting or levelling systems

Parallel motor operation in industrial machinery

Marine and offshore winch or davit synchronization

Load balancing circuits in hydraulic presses

Available Configurations:

Pressure-compensated flow divider/combiners

Bi-directional operation for both division and combination

Multiple flow capacity options for system design flexibility
