Sun Hydraulics Load Control Reactive Cartridge Valves

Smooth Load Management | Pilot & Flow-Responsive | Advanced Motion Control

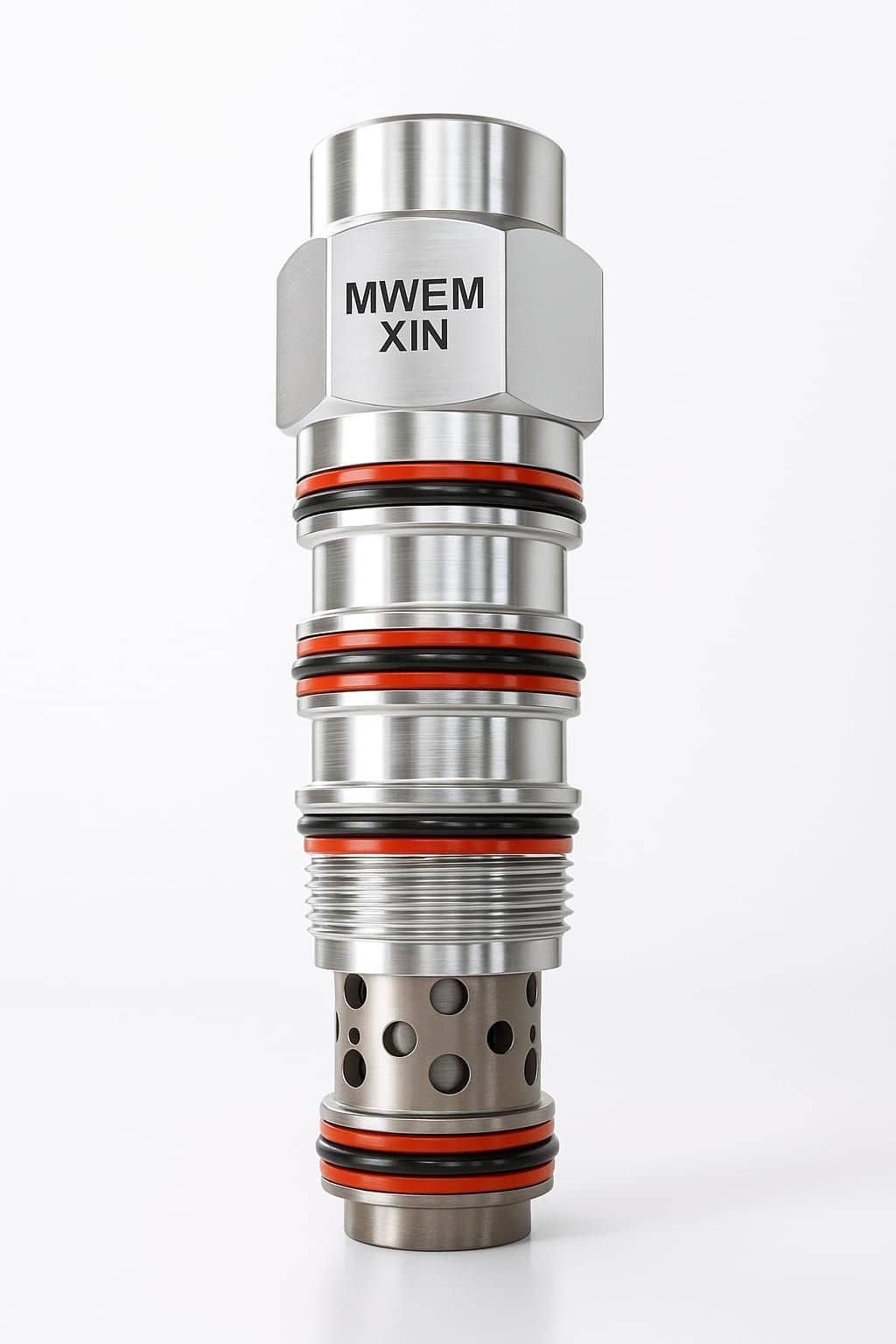

Sun Hydraulics' Load Control Reactive Cartridge Valves are engineered for precise and stable control of overrunning or suspended loads in hydraulic systems. These valves differ from standard counterbalance valves by only opening when both pilot pressure and load-induced flow are present, resulting in smoother operation, reduced energy loss, and superior motion control.

Ideal for applications with rapidly changing loads or where safety and control are critical, reactive valves prevent unwanted actuator movement and provide exceptional system stability. Their unique flow-sensitive design eliminates oscillation and load “chatter,” making them especially effective in mobile and industrial machinery.

Key Features:

⚙️ Flow & Pilot Responsive Operation: Valve opens only when pilot pressure and reverse flow are detected, enhancing control

⚖️ Superior Load Holding: Prevents drift and ensures load stability until intentional movement is commanded

💧 Reduced Shock and Vibration: Ideal for high-speed or sensitive hydraulic movements

🧩 ISO Standard Cavities: Easy integration into new or existing manifolds

📏 Adjustable Pressure Settings: Tune response characteristics to suit application needs

🛠️ Compact & Durable Design: Built for demanding mobile, marine, and industrial environments

Applications:

Hydraulic lifting and lowering systems

Boom and arm control on mobile machinery

Winch and hoist systems in marine/offshore setups

Load-sensitive industrial actuators

Forestry and construction equipment
